1. Total quality control after production to meet the highest standard.
2. Low vibration and noise, maximum output and low raise in temperature.
3. High quality clutch and cork for longer endurance.
4. Lever, Slide base and brake easily adjustable. |
|
| |
|
|
|
| |

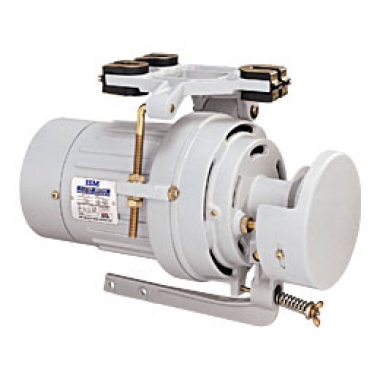

1 Φ Clutch Motor Specification
| Model No. |
NS-212
|
NS-214
|
NS-312
|
NS-314
|
NS-412
|
NS-414
|
NS-512
|
NS-514
|
NS-612
|
NS-614
|
| Rated Output (Watt) |
200 ( ≒ 1/4hp)
|
250 ( ≒ 1/3hp)
|
400 ( ≒ 1/2hp) |
500 ( ≒ 5/8hp)
|
600 ( ≒ 3/4hp) |
| Poles No. |
2
|
4
|
2
|
4
|
2
|
4
|
2
|
4
|
2
|
4
|
|
Rated Current(A) Power200V
|
3.80/3.61
|
3.25/3.75
|
3.61/3.50
|
4.06/3.37
|
4.96/5.42
|
5.20/5.96
|
NA / NA
|
NA / NA
|
7.87/4.05
|
7.57/ NA
|
|
Rated Current(A)
Power 380V
|
1.95/NA
|
1.55/1.97
|
1.76/
|
1.98/1.74
|
2.71/2.75
|
2.68/2.99
|
3.45/ NA
|
3.46/ NA
|
3.62/4.29
|
3.75/4.32
|
|
Rpm(50/60Hz)
|
2860/3450
|
1425/1720
|
2860/3450
|
1425/1720
|
2860/3450
|
1425/1720
|
2860/3450
|
1425/1720
|
2860/3450
|
1425/1720
|
|
N.W.(Kg)
|
17.84
|
17.84
|
19.12
|
19.12
|
20.66
|
20.66
|
22.00
|
22.00
|
22.50
|
22.50
|
|
G..W.(Kg)
|
18.99
|
18.99
|
20.27
|
20.27
|
21.84
|
21.84
|
23.15
|
23.15
|
23.65
|
23.65
|
3 Φ Clutch Motor Specification
|
Model No.
|
NS-232
|
NS-234
|
NS-332
|
NS-334
|
NS-432
|
NS-434
|
NS-532
|
NS-534
|
NS-632
|
NS-634
|
|
Rated Output (Watt)
|
200 ( ≒ 1/4hp)
|
250 ( ≒ 1/3hp)
|
400 ( ≒ 1/2hp) |
500 ( ≒ 5/8hp)
|
600 ( ≒ 3/4hp) |
|
Poles No.
|
2
|
4
|
2
|
4
|
2
|
4
|
2
|
4
|
2
|
4
|
|
Rated Current(A) Power200V
|
NA /NA
|
NA / NA
|
1.49/1.67
|
1.42/1.63
|
1.69/1.75
|
1.92/2.19
|
NA / NA
|
NA / NA
|
2.27/2.63
|
2.67/ NA
|
|
Rated Current(A)
Power 380V
|
0.99/NA
|
0.77/ NA
|
0.86/0.93
|
0.81/0.95
|
0.97/1.00
|
0.82/1.28
|
1.27/ NA
|
1.44/ NA
|
1.66/ NA
|
1.57/ NA
|
|
Rpm(50/60Hz)
|
2860/3450
|
1425/1720
|
2860/3450
|
1425/1720
|
2860/3450
|
1425/1720
|
2860/3450
|
1425/1720
|
2860/3450
|
1425/1720
|
|
N.W.(Kg)
|
19.07
|
19.07
|
19.05
|
19.05
|
21.23
|
21.23
|
21.32
|
21.32
|
21.51
|
21.51
|
|
G..W.(Kg)
|
19.72
|
19.72
|
20.24
|
20.24
|
22.41
|
22.41
|
22.50
|
22.50
|
22.69
|
22.69
|
|
| |
|
|
|
|
|
 |
|
