PRODUCTS >> MOTOR SERIES

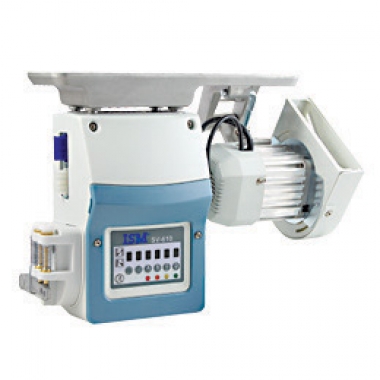

  SV-610 Servo Motor

products introduction products photo
1. Miniature size and weight with strong starting torque.

2. Low power consumption and nice design.

3. Motor could be built in or be attached externally.

4. Maximum speed can reach to 5000rpm.



SPECIFICATION

FUNCTION

Value

Input Power Voltage

Single Phase: 220V

Motor Output Power

450 / 550W

Motor Rated Speed

3500 / 5000 RPM

Pulley Size Available

65-85mm

Needle Up/Down

Y

Max. Speed Adjustment

Y

Soft Star

Y

Trimmer/Wiper

Y

Automatic Backtacking

Y

Target Stitch

Y

Reversed Run Needle Lifting after Thread Trimming

Y

FET Over Current Protection

Y

Material Counter Function

Y

The Diagnostic Mode to Inspect The Input/Output Conditions

Y

The ERROR History Mode (6 Times)

Y

Total Weight

7.2~7.6 Kg


SV-610 Control Panel


 SV-610 Instruction Manual
