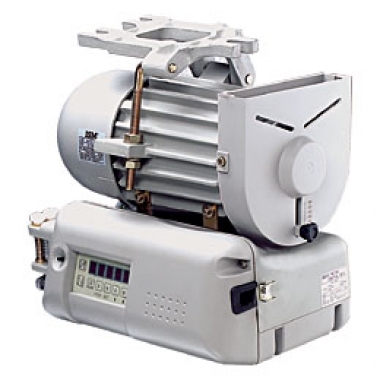

1. Full functional able to work with any type of sewing machine.
2. Powerful, quick response, save energy.
3. Multiple I/O connection available, up to 18/ 8+1.
4. Control box size minimized & weight reduced. (W/O Transformer)
5. SV-250, SV-260 can be controlled by the same control box.
6. Control the sewing machine speed directly by measuring pulley size.
7. Diagnostic mode available to inspect the I/O status.
8. Popular, High Quality, Customer Approved. |
|
| |
|
|
|
| |
| SPECIFICATION |
|
FUNCTION
|
Value
|
|
Input Voltage Ranges
|
1 ψ : 110V ± 10%
1 ψ : 220V ± 10%
3 ψ : 220V ± 10%
|
|
Motor Output Power
|
550W
|
|
Motor Rated Speed
|
3000 RPM
|
|
Pulley Size Range
|
65-140mm
|
|
Needle Up/Down Positioning
|
Y
|
|
Max. Speed Adjustment
|
Y
|
|
Soft Star
|
Y
|
|
Trimmer/Wiper
|
Y
|
|
Pressure Foot Lifting
|
Y
|
|
Inching
|
Y
|
|
Target Stitching
|
Y
|
|
Automatic Back-tacking
|
Y
|
|
Reverse after Thread Trimming
|
Y
|
|
Module/ Transistor Protection
|
Y
|
|
Material Counter
|
Y
|
|
Edge Sensor Input Ports No.
|
2
|
|
I/O Ports No.
|
18/ 8+1
|
|
With Standing Operation 3 Pedals
|
Y (With PK-70)
|
|
With Standing Operation 1 Pedal
|
Y (With PK-80)
|
|
With External Control Panel
|
Y (With C-200)
|
|
Diagnostic Mode (Inspect I/O Conditions)
|
Y
|
|
Display ERROR History Mode ( Record Previous 6 Times)
|
Y
|
|
Gross Weights
|
18.9Kg
|
|
Packing Dimensions
|
489L*426W*320H
|
|
C-200 Control Box (optional)
|
 |
|
| |
|
|
|
|
|
 |
|
